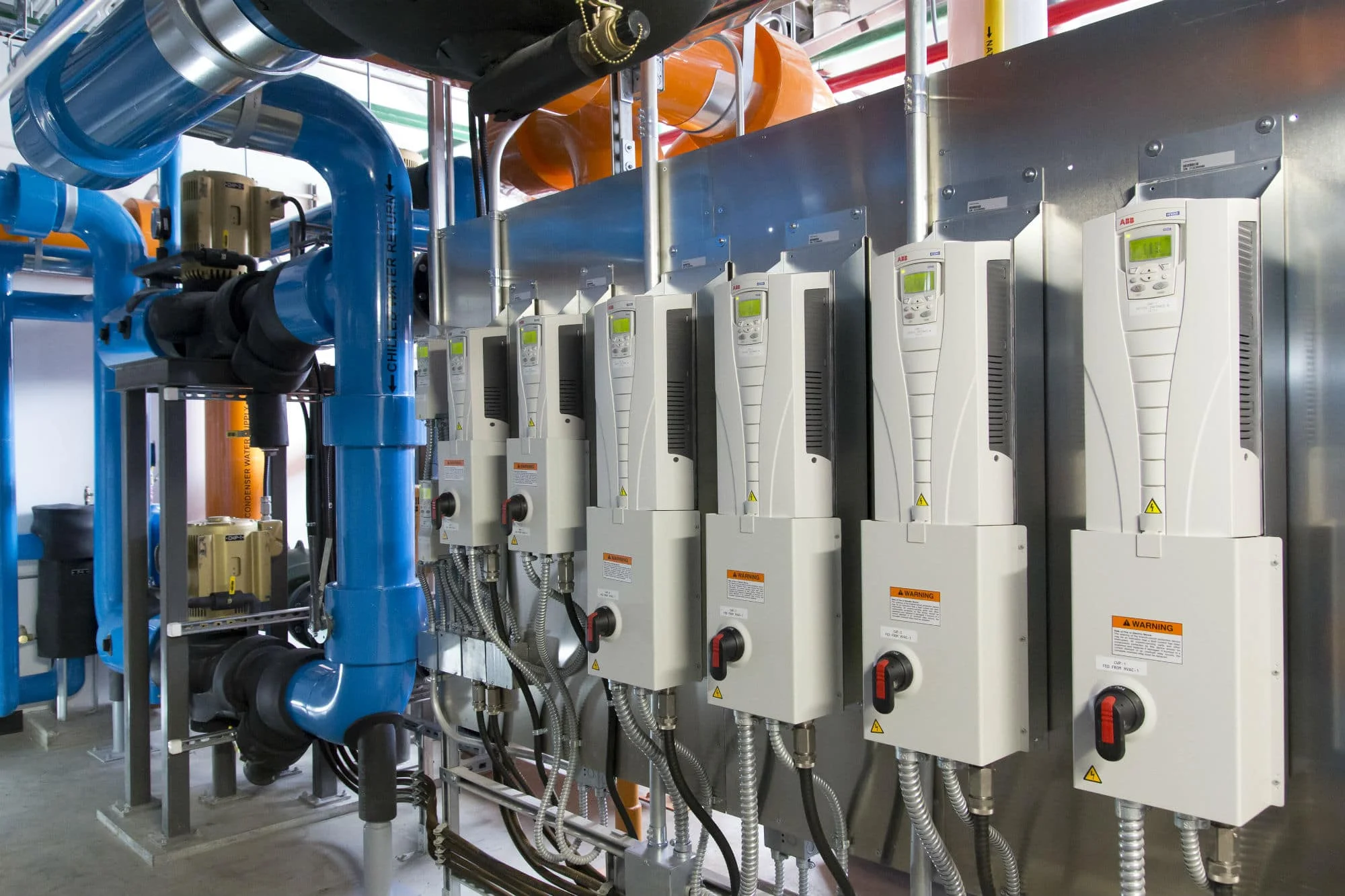

Variable Frequency Drives (VFD)
Specification: Up to 40% Electrical Draw Reduction
VFD retrofits on pump and fan motors to modulate power, cutting electrical consumption by up to 40%.
Direct Engineering Summary: Variable Frequency Drives (VFD)
Per the Affinity Pump and Fan Laws, reducing motor shaft speed by just 20% cuts brake horsepower and kW consumption by nearly 49%. Western Mechanical, Inc. (CSLB #618138, UA Local 250) engineers, installs, and commissions commercial HVAC Variable Frequency Drives (ABB ACH580, Danfoss VLT HVAC, Yaskawa HV600, Eaton) on supply/return fans, cooling towers, and hydronic pumps across Southern California—complete with IEEE 519 harmonic mitigation and part-load kW/ton energy optimization: (661) 251-0111.
Technical Specifications & Engineering Benchmarks
Benchmark Parameter
Engineering Specification
Discipline Classification
SPECIALTY • CSLB #618138 (C-20 HVAC)
Engineering Specification
Up to 40% Electrical Draw Reduction
Supported OEM Platforms
ABB, Yaskawa, Danfoss, Schneider Electric / Square D, Eaton
Service Labor Standard
100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA
< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory Standards
Title 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Engineering Scope & Southern California Field Execution
Motors running across-the-line at fixed 100% speed waste massive amounts of electricity during mild weather. In accordance with the Affinity Laws, reducing pump or fan speed by 20% slashes electrical power draw by nearly 50%. We integrate VFD drives from ABB, Yaskawa, Danfoss, and Square D.
Affinity-Law Energy Capture, Critical Bypass Contactors & Shaft-Grounding Protection
Constant-speed motors throttled by discharge balance valves or inlet vortex dampers waste massive electrical energy fighting artificial pressure drop for 85%+ of annual part-load operating hours. However, slapping a generic industrial drive onto an older NEMA motor without proper dV/dt filtering or shaft grounding induces high-frequency common-mode voltages that EDM-flute motor ball bearings within 18 months.
Western Mechanical specifies HVAC-rated ABB ACH580 and Danfoss VLT packages equipped with 3-contactor manual/auto across-the-line service bypasses (essential for hospital smoke-control and critical chilled-water redundancy), installs AEGIS carbon-microfiber shaft grounding rings, and verifies inverter-duty Class F/H insulation compatibility.
Large clusters of 6-pulse PWM drives in medical centers and broadcast facilities inject 5th, 7th, 11th, and 13th current harmonics onto 480V distribution buses—overheating dry-type transformers and tripping backup diesel generator voltage regulators during emergency transfer tests.
We integrate 5% DC link chokes, line reactors, or ultra-low-harmonic active front-end (AFE) drives (<3%–5% TDD per IEEE 519-2022), map native BACnet MS/TP or BACnet/IP points (kW, amps, Hz, fault codes, torque) into Niagara N4 BAS graphics, and program mechanical resonance skip-frequency bands on air handlers and cooling towers.
UA Local 250 Field Protocol & Certified Best Practices
Affinity law optimization matching motor RPM to real-time thermal load
Harmonic filter installation protecting facility electrical distribution
Integration with building automation systems via BACnet/Modbus
Bypass contactor testing ensuring manual emergency run capability
Frequently Asked Questions: Variable Frequency Drives (VFD)
How do the HVAC Affinity Laws explain VFD energy savings?
The Affinity Laws state that motor power consumption varies with the cube of motor speed. Running a pump or fan motor at 80% speed requires only 51% of full electrical power.
Why are harmonic filters and line reactors important when installing VFDs?
Solid-state variable frequency drives generate electrical harmonics that can overheat building transformers and interfere with sensitive IT gear. Line reactors and active harmonic filters clean the power waveform.
Can VFDs be linked to our existing building management system?
Yes. All our drive installations feature native BACnet MS/TP, BACnet IP, or Modbus cards allowing facility operators to monitor motor current, kW draw, and run hours directly from their BMS console.
