Balancing Services & Air Distribution
Specification: ASHRAE 62.1 & Title 24 Standards
Static pressure calibration and certified air balancing ensuring equalized pressure across all facility zones.
Direct Engineering Summary: Balancing Services & Air Distribution

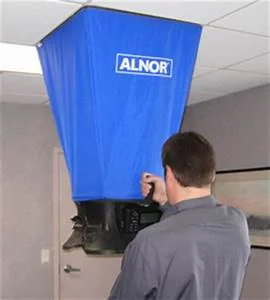

Western Mechanical, Inc. executes certified commercial Testing, Adjusting, and Balancing (TAB) for air-side VAV networks and hydronic chilled/heating hot-water loops throughout Los Angeles, Santa Clarita, Orange County, and the Inland Empire. Operating under CSLB #618138 with NIST-traceable Shortridge AirData multimeters, TSI Alnor balometers, and ultrasonic flowmeters, our UA Local 250 technicians resolve tenant comfort complaints, Title 24 outdoor-air deficits, and negative building envelope infiltration. Dispatch: (661) 251-0111.
Technical Specifications & Engineering Benchmarks
Benchmark Parameter
Engineering Specification
Discipline Classification
SERVICE • CSLB #618138 (C-20 HVAC)
Engineering Specification
ASHRAE 62.1 & Title 24 Standards
Supported OEM Platforms
TSI Alnor, Shortridge Instruments, Dwyer, Belimo
Service Labor Standard
100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA
< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory Standards
Title 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Engineering Scope & Southern California Field Execution
Air naturally equalizes pressure. If a building expels more air than it brings in, a negative pressure condition develops—drawing in unconditioned outside air, dust, and moisture through doors and windows. In repurposed or expanded facilities, certified air balancing equalizes zone pressures and reduces system strain.
Decades of tenant improvements, partition wall reconfigurations, and uncalibrated VAV terminal box replacements leave commercial office towers and medical plazas starved of airflow at distant duct branches while core zones overcool and cycle electric or hydronic reheat simultaneously. Rather than throttling individual diffusers blindly, our TAB technicians execute Pitot-tube equal-area duct traverses at main trunk risers first.
We calibrate DDC VAV flow K-factors against measured supply CFM, set minimum outdoor-air economizer damper positions per ASHRAE Standard 62.1 breathing-zone calculations, and maintain +0.03" to +0.05" w.g. positive lobby pressurization so hot Southern California tarmac dust and humid coastal air never infiltrate elevator shafts.
Central chiller plants suffering from "Low Delta-T Syndrome"—where chilled water leaves at 42°F but returns at 48°F instead of the design 54°F to 56°F—waste massive secondary pump kW while starving upper-floor air handlers during triple-digit heatwaves. Short-circuiting bypasses, oversized two-way PICVs, and wide-open manual globe valves are the primary culprits.
Western Mechanical profiles differential pressure across Tour & Andersson, Bell & Gossett, and Griswold balancing valves, verifies Belimo characterizing ball-valve stroke authority, and restores full coil waterside residence time so one chiller carries the cooling load that previously required two staged machines.
UA Local 250 Field Protocol & Certified Best Practices
Duct traverse static pressure measurements and velocity profiles
Diffuser CFM balancing and return air volume equalization
Building envelope pressurization testing preventing draft infiltration
Outside air damper calibration ensuring ASHRAE 62.1 ventilation rates
Frequently Asked Questions: Balancing Services & Air Distribution
What causes persistent hot and cold spots in commercial office buildings?
Hot and cold spots are typically caused by uncalibrated VAV terminal boxes, improper duct static pressure, or modified tenant space layouts that disrupted original airflow design CFM.
How does air balancing improve indoor air quality and building pressurization?
Proper air balancing ensures positive building pressurization, preventing infiltration of untreated outdoor humidity, dust, and vehicle exhaust while maintaining fresh air intake mandated by ASHRAE 62.1.
Do you balance both air systems and water/hydronic loops?
Yes. We provide complete air balancing (diffusers, duct traverses, RTUs) as well as hydronic balancing (circuit setter valves, chilled/hot water coils, and primary/secondary loops).
