Laser Alignment & Vibration Analysis

Specification: Tolerance < 0.001" / ISO 10816 Spec

Optical laser shaft alignment to 0.001" and FFT vibration analysis preventing bearing and mechanical seal failures.

Direct Engineering Summary: Laser Alignment & Vibration Analysis

Western Mechanical, Inc. (CSLB #618138, 100% UA Local 250 union-trained Foremen and technicians) performs sub-thousandth (<0.001") dual-laser shaft alignment and triaxial Fast Fourier Transform (FFT) vibration spectrum diagnostics across Southern California central plants. Using Pruftechnik Optalign and Easy-Laser XT systems calibrated to ISO 20816-3, we eliminate angular soft-foot, coupling shear, bearing raceway spalling, and impeller unbalance on centrifugal chillers, split-case hydronic pumps, and cooling tower right-angle gear drives. Call (661) 251-0111.

Technical Specifications & Engineering Benchmarks

Benchmark Parameter Engineering Specification
Discipline ClassificationSERVICE • CSLB #618138 (C-20 HVAC)
Engineering SpecificationTolerance < 0.001" / ISO 10816 Spec
Supported OEM PlatformsEasy-Laser, Pruftechnik, SKF, Fluke Reliability
Service Labor Standard100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory StandardsTitle 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70

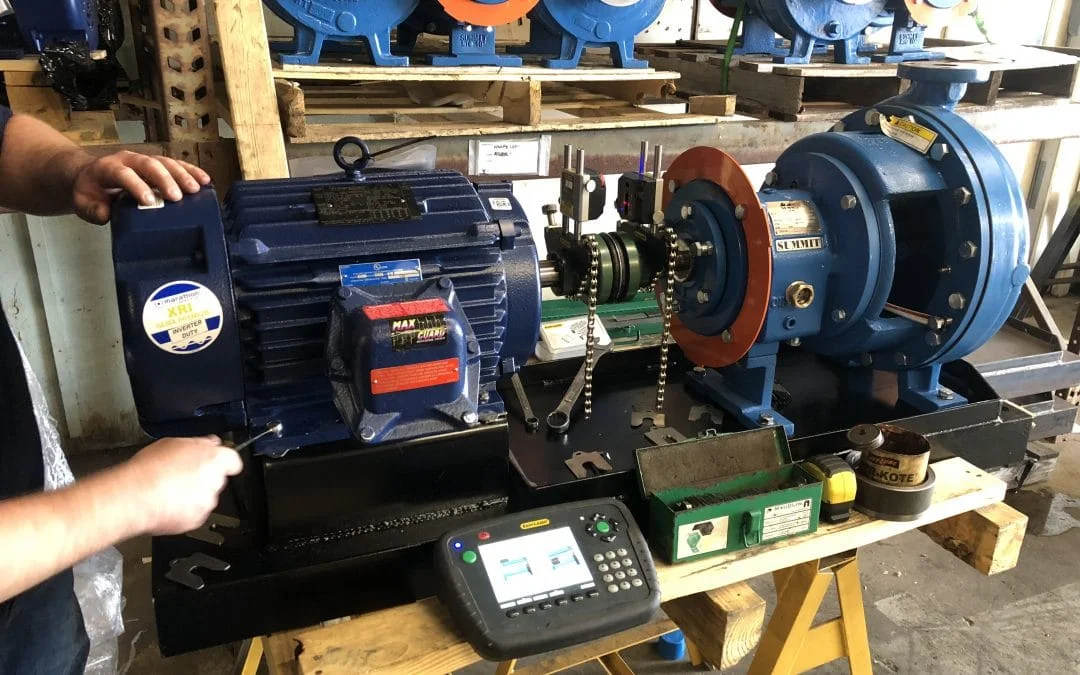

Laser Alignment & Vibration Analysis - Western Mechanical, Inc. CSLB #618138

Engineering Scope & Southern California Field Execution

When vibration increases beyond normal levels, it is an urgent sign of trouble. Poor alignment of pumps, motors, and compressors causes premature bearing failure, oil seal failure, bushing failure, and excessive electrical consumption. Western Mechanical Inc. aligns rotating equipment to ultra-tight tolerances, guaranteeing long mechanical life.

Triaxial FFT Spectral Diagnostics & ISO 20816-3 Rotating Machinery Fault Isolation

Unchecked mechanical vibration in high-horsepower chilled-water pumps, open-drive chiller motors, and induced-draft cooling tower fans accelerates rolling-element bearing fatigue exponentially—doubling dynamic radial load cuts L10 bearing life by nearly 88%. Our machinist-grade union mechanics capture triaxial velocity (in/sec PK) and high-frequency acceleration enveloping waveforms across motor inboard, motor outboard, coupling, and driven-impeller bearing housings.

By separating 1X synchronous unbalance from 2X/3X axial misalignment, blade-pass hydraulic cavitation, electrical rotor-bar pass frequencies, and SKF/Timken inner-race ball-pass defect harmonics (BPFI/BPFO), facility directors receive actionable repair scopes weeks before a seized shaft or blown tungsten-carbide mechanical seal forces an unplanned plant outage.

Thermal-Growth Compensated Dual-Laser Alignment & Baseplate Grout Remediation

Dial-indicator and straightedge alignments routinely miss pipe-strain distortion and thermal rise between ambient cold shutdown and 180°F hot-water or high-amp continuous operation. Western Mechanical measures baseplate soft-foot with 304 stainless pre-cut shims, relieves suction and discharge flange bolt stress at flex connectors, and programs OEM thermal-offset targets directly into dual-laser optical heads.

Every alignment engagement concludes with a before-and-after colinear tolerance certificate (<0.0005 in/in angularity and <0.0015 in parallel offset at 1,800–3,600 RPM), cutting parasitic coupling friction and lowering motor amperage draw by 3% to 7% across 24/7 hospital and industrial loops.

UA Local 250 Field Protocol & Certified Best Practices

Frequently Asked Questions: Laser Alignment & Vibration Analysis

Why is optical laser alignment superior to traditional dial indicators or straight edges?

Laser alignment eliminates human parallax error and bracket sag, resolving angular and offset misalignment down to one-thousandth of an inch (0.001") across long spans and thermal growth vectors.

What equipment benefits most from vibration spectral analysis?

Chilled water pumps, cooling tower fan shafts, centrifugal chiller drivelines, and air handling unit blowers benefit enormously by detecting bearing degradation weeks before catastrophic failure.

What standards does Western Mechanical adhere to for vibration severity?

We evaluate all rotating machinery in accordance with ISO 10816 vibration severity standards, providing stamped before-and-after velocity spectrum reports.
