Industrial Pumps & Hydronics

Specification: Chilled Water & Condenser Loops

Centrifugal condenser and chilled water pump overhaul, mechanical seal replacements, and impeller balancing.

Direct Engineering Summary: Industrial Pumps & Hydronics

Primary/secondary chilled-water, condenser-water, heating hot-water, and boiler feedwater pumps run continuously under heavy radial and axial hydraulic thrust. Western Mechanical, Inc. (CSLB #618138, UA Local 250) rebuilds and aligns Bell & Gossett, Armstrong, Taco, Paco, Grundfos, and Aurora split-case, end-suction, and vertical inline commercial pumps across Southern California—replacing mechanical seals, bronze wear rings, shafts, and motors with 24/7 dispatch: (661) 251-0111.

Technical Specifications & Engineering Benchmarks

Benchmark Parameter Engineering Specification
Discipline ClassificationSPECIALTY • CSLB #618138 (C-20 HVAC)
Engineering SpecificationChilled Water & Condenser Loops
Supported OEM PlatformsBell & Gossett (Xylem), Armstrong Fluid Technology, Taco Comfort, Paco / Grundfos
Service Labor Standard100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory StandardsTitle 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Industrial Pumps & Hydronics - Western Mechanical, Inc. CSLB #618138

Engineering Scope & Southern California Field Execution

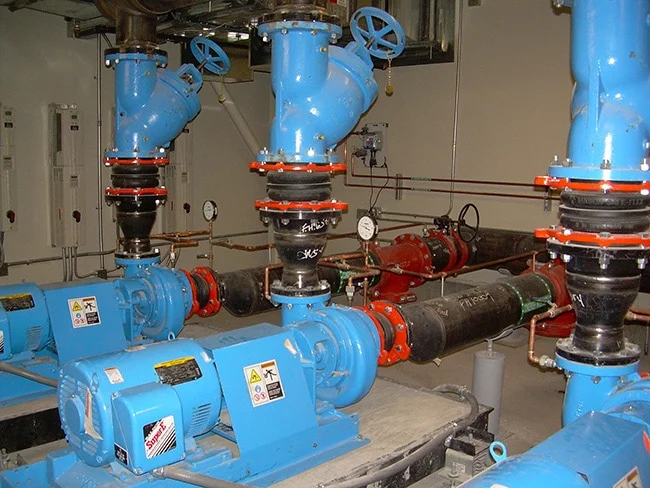

Pumps keep the thermal lifeblood of central plants circulating. Unbalanced impellers or worn seals lead to disastrous motor burnouts and catastrophic flooding. We service base-mounted and inline pumps from Bell & Gossett, Armstrong, Taco, and Paco.

Horizontal Split-Case & End-Suction Rotating Assembly Overhauls & Seal Upgrades

A leaking pump stuffing box or squealing mechanical seal in a basement central plant quickly corrodes cast-iron volute pedestals, washes grease out of inboard ball bearings, and floods equipment housekeeping pads. In open condenser-water loops carrying airborne grit, abrasive particles score shaft sleeves and open impeller-to-casing wear-ring clearances—dropping pump head and GPM by 15% to 25%.

Western Mechanical isolates suction triple-duty and discharge butterfly valves, pulls rotating assemblies on Bell & Gossett Series e-1510/e-HSC and Armstrong 4300/4600 pumps, machines or replaces 316SS shaft sleeves, installs silicon-carbide/Viton John Crane or Chesterton cartridge mechanical seals with cyclone separator flush lines, and dynamically balances trimmed bronze impellers.

Differential Pressure Sensor Placement, Cavitation Elimination & VFD Pump Staging

Net Positive Suction Head (NPSH) starvation—caused by plugged suction Y-strainer baskets, collapsed expansion-tank bladders dropping static fill pressure, or improperly piped suction elbows without straight-run diffusers—creates imploding vapor bubbles that pit impeller vanes like gravel.

Our hydronic specialists clean suction diffusers, pre-charge ASME bladder expansion tanks to exact building static height plus 5 PSIG, relocate remote ΔP transducers two-thirds down the hydraulically most-remote riser, and commission VFD lead/lag staging to eliminate deadheading and water hammer.

UA Local 250 Field Protocol & Certified Best Practices

Frequently Asked Questions: Industrial Pumps & Hydronics

What are the telltale symptoms of pump cavitation in a central plant?

Cavitation sounds like gravel or marbles rattling inside the pump volute. It occurs when suction head is insufficient, creating vapor bubbles that implode violently and pit the bronze or stainless impeller.

How does pipe strain ruin pump bearings and mechanical seals?

When heavy piping headers are not properly supported, their deadweight pulls on the pump suction and discharge flanges, cocking the shaft and destroying seals in as little as 48 hours.

Do you carry mechanical seal replacements for emergency turnaround?

Yes. We stock and rapidly source Viton, silicon carbide, and tungsten carbide mechanical seals for standard B&G and Armstrong pump models throughout Southern California.
