Fan Wall Technology
Specification: Zero Single-Point-of-Failure
Modular array fan wall retrofits replacing massive belt-driven blowers with multi-fan redundancy.
Direct Engineering Summary: Fan Wall Technology
Single large belt-driven centrifugal supply and return fans inside built-up hospital, university, and high-rise air handling units (AHUs) represent a catastrophic single point of failure—a snapped V-belt, spun fan shaft, or shorted 75-HP motor halts surgical or floor ventilation instantly. Western Mechanical, Inc. (CSLB #618138, UA Local 250) designs and installs modular N+1 ECM and VFD Fan Wall array retrofits across Southern California without crane demolition: (661) 251-0111.
Technical Specifications & Engineering Benchmarks
Benchmark Parameter
Engineering Specification
Discipline Classification
SPECIALTY • CSLB #618138 (C-20 HVAC)
Engineering Specification
Zero Single-Point-of-Failure
Supported OEM Platforms
HUNTAIR / Nortek, Greenheck, Twin City Fan, Ebm-Papst, Ziehl-Abegg
Service Labor Standard
100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA
< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory Standards
Title 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Engineering Scope & Southern California Field Execution
Traditional air handlers rely on a single massive motor and blower wheel; if the belt breaks or motor burns out, the entire building loses ventilation. Fan Wall Technology retrofits replace the single blower with an array of smaller, direct-drive electronically commutated fans with built-in redundancy.
Subterranean & Penthouse Knock-Down Fan Wall Retrofits Inside Existing AHU Casings

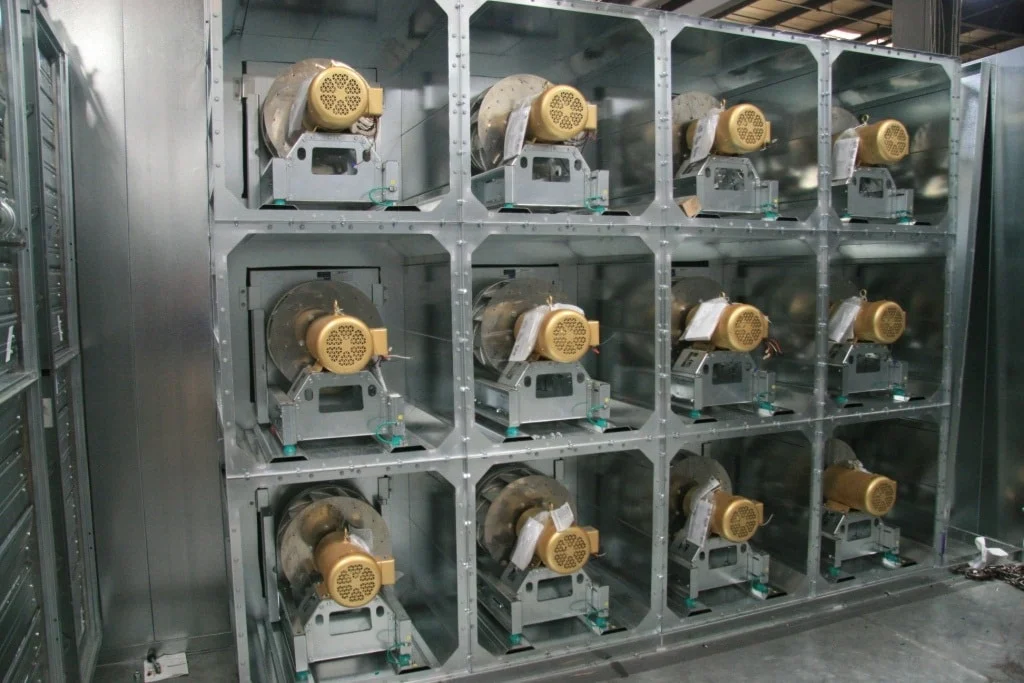

Every component of a modular Fan Wall cube (Huntair/Nortek, Greenheck, Twin City, ebm-papst, Ziehl-Abegg) passes cleanly through a standard 36-inch mechanical room doorway and freight elevator—eliminating street closures, structural roof cuts, and multi-week AHU shutdowns. Our union sheet-metal and pipefitting crews torch/unbolt obsolete scroll housings, inertia concrete bases, and rusted spring isolators over a single weekend.
We erect structural aluminum/steel bulkhead framing sealed airtight to the existing AHU cabinet, wire redundant multi-fan VFD or integrated EC motor arrays with backdraft isolation dampers, and commission true N+1 airflow capacity so one cube can be serviced safely while the building stays online at 100% design CFM.
Uniform Coil Face Velocity, Acoustic NC Reduction & Belt-Dust Elimination for Clean Spaces
Large single-wheel DWDI centrifugal blowers create turbulent air jetting across chilled-water coils and Final MERV-14/HEPA filter banks while shedding rubber V-belt particulate into healthcare and laboratory airstreams.
Distributed direct-drive airfoil Fan Wall arrays shorten required AHU plenum mixing length, create laminar uniform velocity profiles across cooling coils (improving latent dehumidification and heat transfer), reduce low-frequency octave-band rumble by 6 to 12 dBA, and cut fan electrical consumption by 20%–38%.
UA Local 250 Field Protocol & Certified Best Practices
N+1 modular redundancy: if one fan stops, remaining fans ramp up seamlessly
Elimination of belts, pulleys, and pillow-block bearings (zero grease maintenance)
Dramatic reduction in mechanical acoustic noise and low-frequency rumble
Compact modular footprint enabling installation through standard doorways
Frequently Asked Questions: Fan Wall Technology
What is the primary benefit of Fan Wall technology over traditional centrifugal blowers?
Zero single point of failure. If one fan motor trips, the remaining fans automatically accelerate to maintain target static pressure and airflow, ensuring zero tenant disruption.
Can a Fan Wall retrofit be installed inside an existing air handling unit casing?
Yes. The modular fan cubes fit through standard 3-foot access doors, eliminating the need to tear out mechanical room walls or hire heavy cranes to replace the entire air handler.
How does Fan Wall technology reduce building acoustic noise?
Multiple smaller direct-drive impellers produce higher-frequency sound that is easily attenuated by standard duct liners, eliminating the low-frequency rumble and belt squeal of large centrifugal wheels.
