Screw Chillers
Specification: Air-Cooled & Water-Cooled
Water-cooled and air-cooled twin screw chiller service, oil separator rebuilds, and slide valve calibration.
Direct Engineering Summary: Screw Chillers
Air-cooled and water-cooled helical rotary twin-screw chillers carry heavy cyclic loads across Southern California manufacturing plants, medical office buildings, and school districts. Western Mechanical, Inc. (CSLB #618138, UA Local 250) delivers 24/7 twin-screw compressor overhauls, slide-valve/Vi capacity actuator repair, coalescing oil-separator service, and electronic expansion valve (EXV) replacement for Trane RTAC/RTHD, Carrier 30XA/23XRV, York YCIV/YVWA, Bitzer, and Hanbell units: (661) 251-0111.
Technical Specifications & Engineering Benchmarks
Benchmark Parameter
Engineering Specification
Discipline Classification
SPECIALTY • CSLB #618138 (C-20 HVAC)
Engineering Specification
Air-Cooled & Water-Cooled
Supported OEM Platforms
Bitzer, Trane, Carrier, York, Daikin
Service Labor Standard
100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA
< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory Standards
Title 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Engineering Scope & Southern California Field Execution

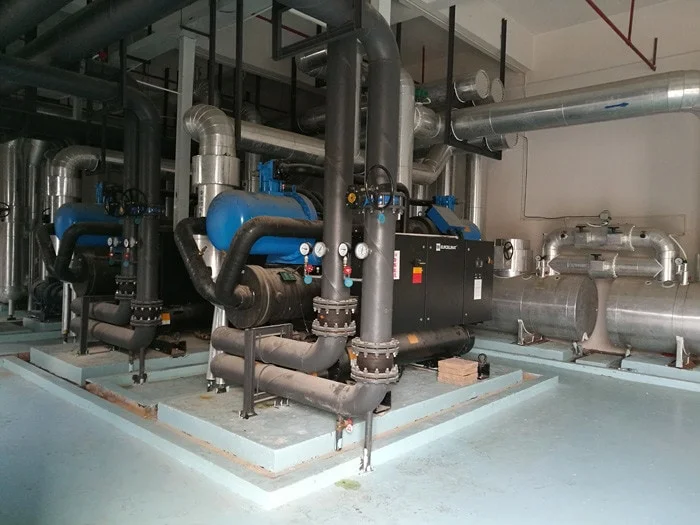

Twin screw chillers provide rugged, continuous cooling for commercial facilities and industrial processes. Our technicians service Bitzer, Hanbell, Trane, and Carrier screw compressors, ensuring exact oil level maintenance, slide valve capacity modulation, and economizer loop performance.
Twin-screw compressors rely on a pressurized oil film to seal rotor lobes, lubricate high-thrust tapered roller bearings, and hydraulically actuate capacity slide valves. When internal coalescing oil-separator elements clog (>15 PSID differential) or POE oil absorbs moisture, oil migrates into the evaporator—starving male/female rotors of lubrication while insulating heat-exchanger tubes.
Our union-trained Foremen and technicians isolate circuits, recover refrigerant into certified DOT cylinders, replace micron oil filters and internal coalescers, unstick scored capacity slide pistons and linear LVDT position sensors, and perform rig-assisted semi-hermetic compressor swaps or machine-shop bearing rebuilds.
High-Ambient Air-Cooled Condenser Rehab, EXV Stepper Diagnostics & VFD Fan Control
Inland Southern California rooftops routinely experience 112°F+ ambient air and solar radiant heat above 135°F on membrane roofs. Fouled microchannel or copper-aluminum condenser coils combined with failed condenser fan contactors drive R-134a/R-513A discharge pressures past 285 PSIG safety trips.
Western Mechanical chemically de-greases dual-bank V-coils from the inside out, replaces stalled stepper-motor EXVs causing low-superheat liquid floodback, repairs oil-cooler solenoid loops, and retrofits variable-speed EC/VFD condenser fan banks to stabilize head pressure across cool coastal nights and desert afternoons.
UA Local 250 Field Protocol & Certified Best Practices
Compressor synthetic lubricant sampling and acid count verification
Internal oil separator filter and strainer replacement
Slide valve capacity control calibration for smooth part-load staging
Subcooling and superheat optimization via electronic expansion valves
Frequently Asked Questions: Screw Chillers
What are the main advantages of twin-screw chillers in industrial facilities?
Screw compressors have few moving parts (two precision helical rotors), high mechanical reliability, superior part-load efficiency via slide valves, and high tolerance to liquid slugging.
Why is oil management critical for screw chiller operation?
Oil seals the rotor clearances, cools the compression chamber, and lubricates the thrust bearings. Routine synthetic oil sampling and coalescent filter replacement are vital to prevent rotor scuffing.
Do you service both air-cooled and water-cooled screw machines?
Yes. We maintain rooftop air-cooled packaged screw chillers (50 to 500 tons) and indoor water-cooled central plant screw units up to 1,000+ tons.
