Centrifugal Chillers
Specification: Capacities up to 3,500+ Tons
Heavy central chiller plant maintenance, annual tube inspection, purge monitoring, and efficiency staging.
Direct Engineering Summary: Centrifugal Chillers
Western Mechanical, Inc. provides factory-level overhauls, ASNT eddy current tube inspections, oil/refrigerant laboratory diagnostics, and microprocessor surge-curve optimization for 200-to-3,500+ ton water-cooled centrifugal chillers across Southern California. Licensed under CSLB #618138 (commercial Refrigeration & C-20 HVAC) and staffed 100% by UA Local 250 chiller mechanics, we service Trane CenTraVac, York YK/YZ, Carrier 19XR, Daikin Magnitude, and Smardt oil-free machines 24/7. Call (661) 251-0111.
Technical Specifications & Engineering Benchmarks
Benchmark Parameter
Engineering Specification
Discipline Classification
SPECIALTY • CSLB #618138 (C-20 HVAC)
Engineering Specification
Capacities up to 3,500+ Tons
Supported OEM Platforms
Trane, Carrier, York, Daikin, McQuay
Service Labor Standard
100% UA Local 250 Union Trained • 0.78 EMR
Emergency Dispatch SLA
< 2 Hours 24/7 Across Southern California • (661) 251-0111
Regulatory Standards
Title 24 Part 6, SCAQMD Rule 1146, HCAI / OSHPD PIN 70
Engineering Scope & Southern California Field Execution
Plants with two or more chillers save immense energy by matching building loads to chiller capacity. We execute comprehensive preventive and predictive maintenance on Trane, Carrier, York, and Daikin centrifugal machines—optimizing chilled water supply temps, monitoring air purge run times, and inspecting evaporator/condenser tube bundles.

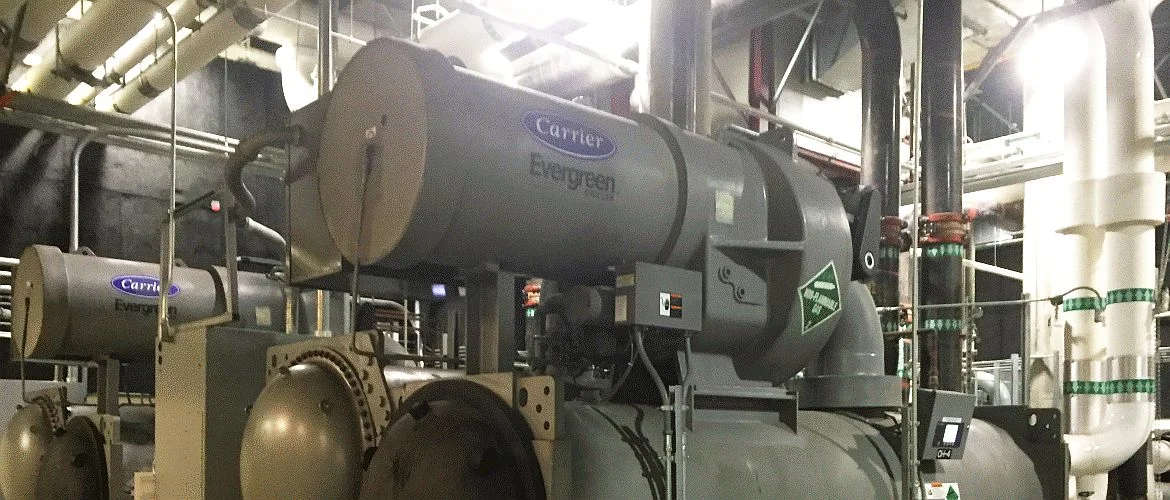

Large water-cooled centrifugal chillers form the thermodynamic backbone of high-rise towers, acute-care hospitals, university central plants, and defense campuses. Over 30,000+ operating hours, inlet guide vane (IGV) cable hysteresis, labyrinth seal wear, thrust-bearing clearance drift, and condenser scale push impeller operating points toward aerodynamic surge and elevated kW/ton.
Our union-trained Foremen and technicians execute major machinist tear-downs on low-pressure R-123/R-514A Trane CVHE/CVHF vessels and medium-pressure R-134a/R-513A/R-1233zd York and Carrier drivelines—micrometer-verifying journal clearances, renewing carbon face seals, recalibrating vane actuator potentiometers, and pressure-testing vessels with dry nitrogen trace charges.
Non-Condensable Purge Diagnostics, Eddy Current Testing & Approach Temperature Recovery
Every 1°F rise in condenser approach temperature (leaving condenser water vs. saturated refrigerant condensing temperature) adds roughly 1.8% to centrifugal compressor shaft power. On negative-pressure chillers, microscopic gasket leaks draw moist room air into the evaporator, forming corrosive hydrofluoric/hydrochloric acids that pit copper tubing and spike purge pump pumpout counts.
Western Mechanical rotary-brushes condenser barrels, conducts 3-year multifrequency eddy current scans to plug thinned tubes before water enters the refrigerant charge, rebuilds high-efficiency EarthWise/Purge-Pak units, and performs spectrographic oil wear-metal analysis (Fe, Cu, Sn, Pb, Si, TAN, Karl Fischer ppm moisture).
UA Local 250 Field Protocol & Certified Best Practices
Annual tube inspection and rotary brush cleaning to eliminate mineral scale fouling
Condenser water open loop weekly water treatment verification
Chilled water closed loop monthly corrosion inhibitor monitoring
Refrigerant leak detection via automated air-purge run timer tracking
Frequently Asked Questions: Centrifugal Chillers
How frequently should centrifugal chiller condenser tubes be brushed?
Condenser tubes should be mechanically brushed at least once per year during annual winter maintenance. Just 0.001 inches of mineral scale increases compressor power demand by up to 11%.
What does excessive air purge run time indicate on a low-pressure centrifugal chiller?
On low-pressure chillers (e.g. R-123 or R-514A), high purge run time indicates atmospheric air and moisture are leaking into the vessel through gaskets or shaft seals, requiring immediate leak tracing.
Can variable speed drives (VFDs) be added to existing constant-speed centrifugal chillers?
Yes. Retrofitting a variable frequency drive onto a constant-speed centrifugal compressor allows lift reduction during mild wet-bulb ambient conditions, slashing electrical consumption by 30% or more.
